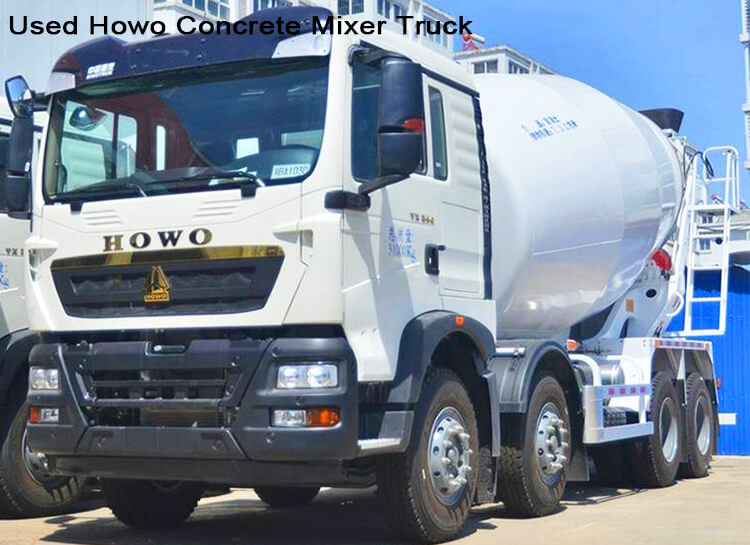

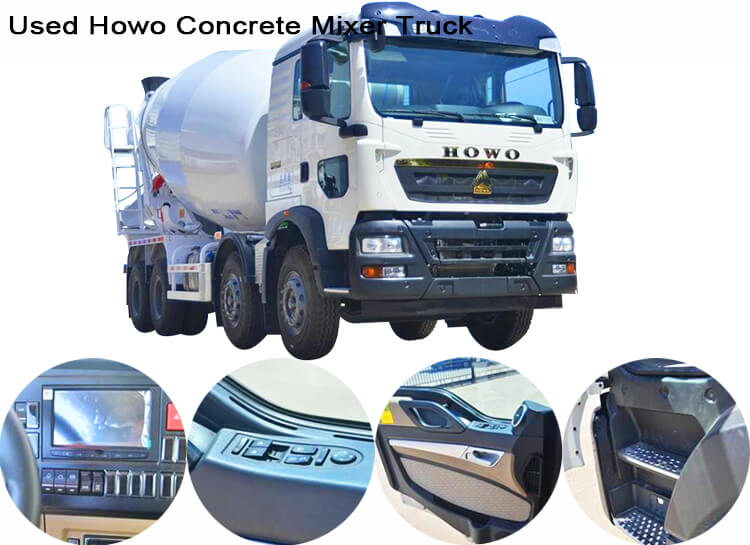

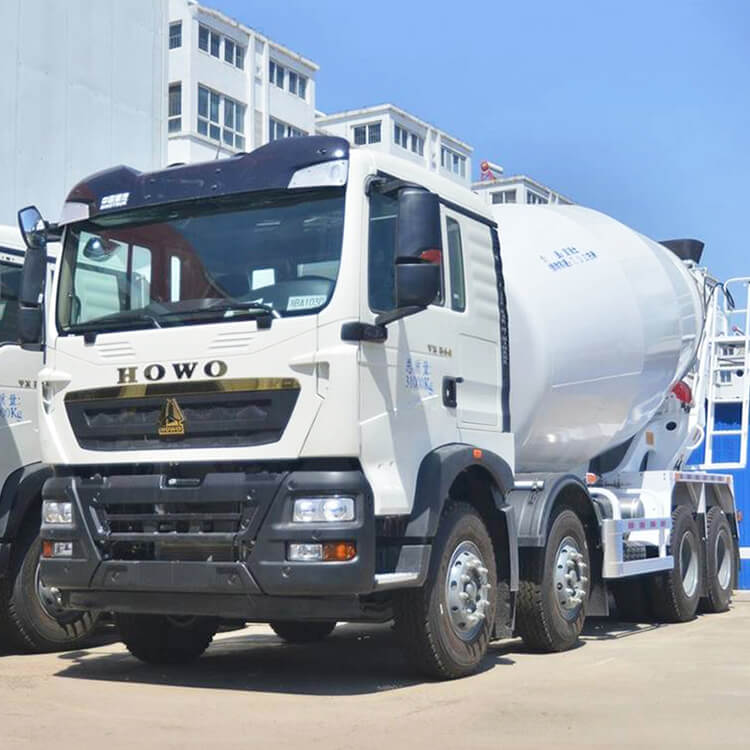

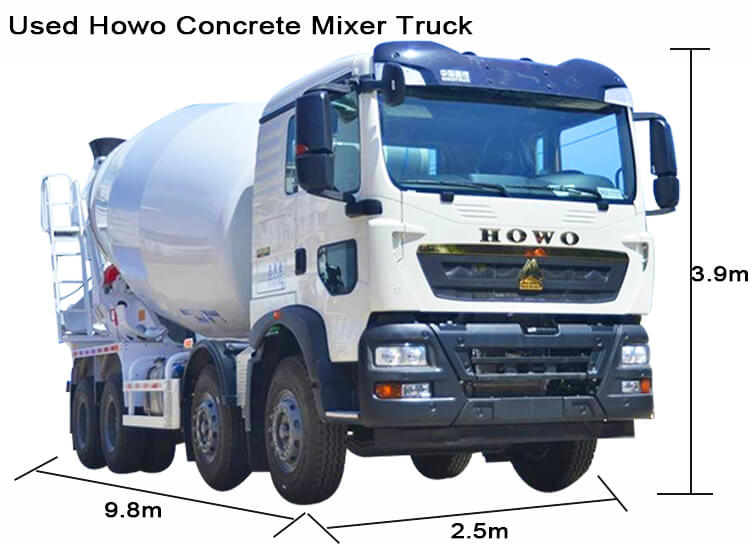

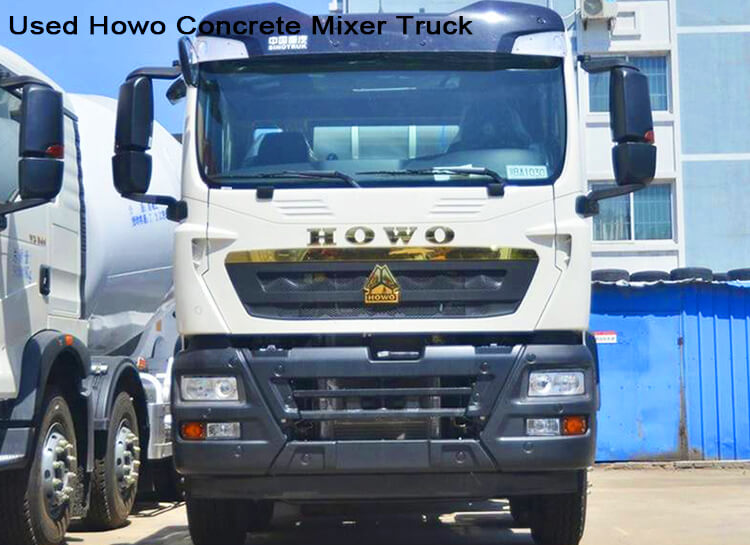

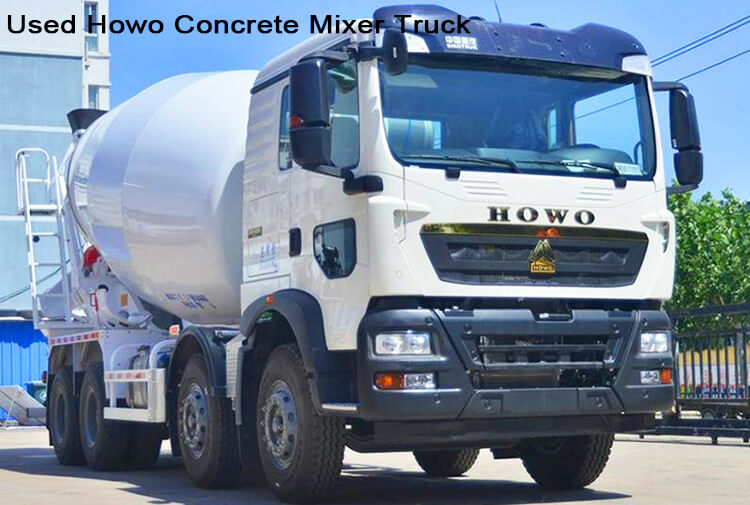

6x4 sinotruk howo used cement mixer lorry for sale is a truck specially used for transporting and mixing concrete. Its chassis is equipped with a rotating mixing drum device, which can keep mixing the concrete during transportation, so that it will remain in an optimal state and will not solidify. It can meet the high requirements of various construction projects for concrete quality and transportation efficiency.
This 6x4 sinotruk howo used cement mixer lorry for sale has a variety of configurations to choose from, including truck horsepower selection and tank capacity size. We will conduct detailed inspections and replacements of various parts before the truck is shipped to ensure the overall service life and performance status of the truck.
Before the sinotruk howo used cement mixer lorry for sale is transported, the raw materials of the concrete, including water, sand, gravel and cement, are placed in the mixing drum in a specific proportion. The mixing blades in the drum can effectively mix these raw materials evenly through the rotating motion, ensuring that the composition of each part of the concrete is consistent, thereby improving the overall state of the concrete.
During the transportation of 6x4 sinotruk howo used cement mixer lorry for sale, the mixing drum of the lorry for sale is constantly rotated to prevent the concrete from solidifying during transportation. Through continuous mixing, the concrete can not only maintain good fluidity, but also avoid quality problems caused by sedimentation or stratification. Ensure that the concrete maintains freshness and consistency during transportation to meet the needs of the construction site.
After arriving at the construction site, align the discharge position of the sinotruk howo used cement mixer lorry for sale mixing drum with the discharge area, and then let the concrete flow out smoothly for workers to pour. This process is very simple and easy to operate, which improves the work efficiency of operators.
The structure of used sinotruk cement mixer lorry has two parts, the lower part is mainly composed of chassis and frame, and the upper part mainly includes transmission system, hydraulic system, mixing tank, feeding and discharging device, water supply system, control system, ladder and other parts.
1. Chassis and frame: The chassis and frame of the used sinotruk cement mixer lorry are made of high-quality high-strength steel, which has sufficient stability. It can not only adapt to long-distance and complex road conditions, but also provide higher carrying capacity and improve the concrete transportation efficiency of the truck.
2. Power take-off device: The used sinotruk cement mixer lorry adopts the main vehicle engine power take-off method. It takes out the engine power by manipulating the power take-off switch and drives the mixing drum to rotate through the hydraulic system. The mixing drum rotates forward during loading and transportation to facilitate the feeding and mixing of concrete, and reverses during unloading. After the work is completed, the power supply connection with the engine is cut off.
3. Mixing device: The mixing device of the sinotruk cement mixer lorry for sale is inside the mixing drum and is used to mix concrete during transportation. It is made of high-quality wear-resistant thin steel plate, and its inner wall is welded with special-shaped spiral blades. When rotating, the concrete moves along the spiral direction of the blade and is mixed and stirred during the continuous lifting and flipping process. During loading and transportation, the mixing drum rotates forward and the concrete moves inward along the blades. During unloading, the mixing drum reverses and the concrete is unloaded outward along the blades. Automatic loading and unloading of concrete is realized.
4. Special mechanism: The special mechanism of used sinotruk cement mixer lorry for sale mainly includes power take-off, reducer, hydraulic system, front and rear brackets of the mixing drum, mixing drum, operating mechanism, cleaning system, etc. The power of the truck chassis is taken out through the power take-off device, which drives the variable pump of the hydraulic system to convert mechanical energy into hydraulic energy and transmit it to the quantitative motor. The motor then drives the reducer, and the reducer drives the mixing device to mix the concrete.
Model: Used 6x4 Howo Cement Mixer Lorry
Cab model:TX-WF lat-top single-bedroom new cab, original air conditioner
Engine Model/Horsepower:WP10H400E50
Emission Standards:EURO II-V
Gearbox model/gear number:HW19710L/10 speed
Rear axle:MAT16ZG
Front axle:H653
Steering machine:Z F8118(Z F brand)
tire:1100R20(10+1)
Container size (m3):12m3
Bodywork Description:(mm)ARK110 pump PMP7.8 reducer
tank:400L
color:white
 |
 |
 |
 |
